Please find below our company brochure that we have recently designed. The brochure covers lists of our services, equipment, and certifications. Please share our brochure with other companies who are looking for measurement and scanning services. #brochure #cmm #scanner #reverseengineering #iso17025 #dimensional

At Precision Measurement and Design, we are capable of 3D scanning large parts or even inaccessible parts from distance using the Laser Tracker System for inspection and measurement purposes. Laser Tracker can scan and measure any part size from car body to aircraft fuselage and train cabins.Laser Tracker can accurately locate a point in 3D

With our Portable Measuring Arm, we are capable of scanning and probing large parts in clamped or free state positions in order to inspect the surface profiles, the true positions of the holes, the trimmed edge lines, and all other GD&T callouts. We can also analysis the twist in the parts by measuring and generating

We are honored to announce that Precision Measurement and Design has been now registered under Controlled Goods Program (CGP). This effort was taken in order to satisfy our customer’s metrology needs in their controlled products. We can now perform CMM measurement and Laser Scanning on parts that are under Controlled Goods List in North America.#CGP #automotive #design #manufacturing #aerospace #cmm #scanning

The portable 3D scanner is capable of performing fast and accurate measurement on different type of parts regardless of the material or the gloss rate. When we scan the parts surfaces, we can compare the scan data (point cloud or polygonal model) versus the part CAD model. In this comparison, we can see the measurement

At Precision Measurement and Design we are capable of performing 3D scanning on small and large parts using portable measuring arm. With this equipment in our metrology lab, we can do reverse engineering/ parts measurement and provide all the data you need such as point cloud, polygonal model, 3D solid model, data color plot, roadmap,

Precision Measurement and Design is now capable of performing CMM measurement services on large parts using one of the most accurate CMM called Global S Chrome with the accuracy of 1.3 micron. We can also perform untouched CMM scanning on this machine. The work volume of this new CMM is 900 mm in X axis,

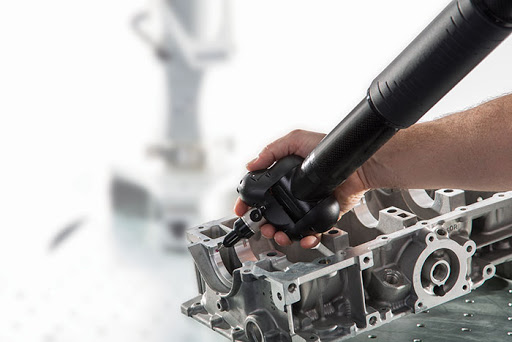

We proudly announce that Precision Measurement and Design now have a new Portable Measuring Arm (Romer) which is capable of both 3D scanning and touch probing with high accuracy and high repeatability. With this new equipment, we can perform 3D dimensional analysis including parts inspection and reverse engineering with covering a wide range of parts

One of the services that we provide at Precision Measurement and Design is to reverse engineer parts and create solid models for re-manufacturing purposes. The photos below represent one of our recent reverse engineering projects. In this project, we received multiple tooling blocks of progressive dies and we scanned them in order to collect the

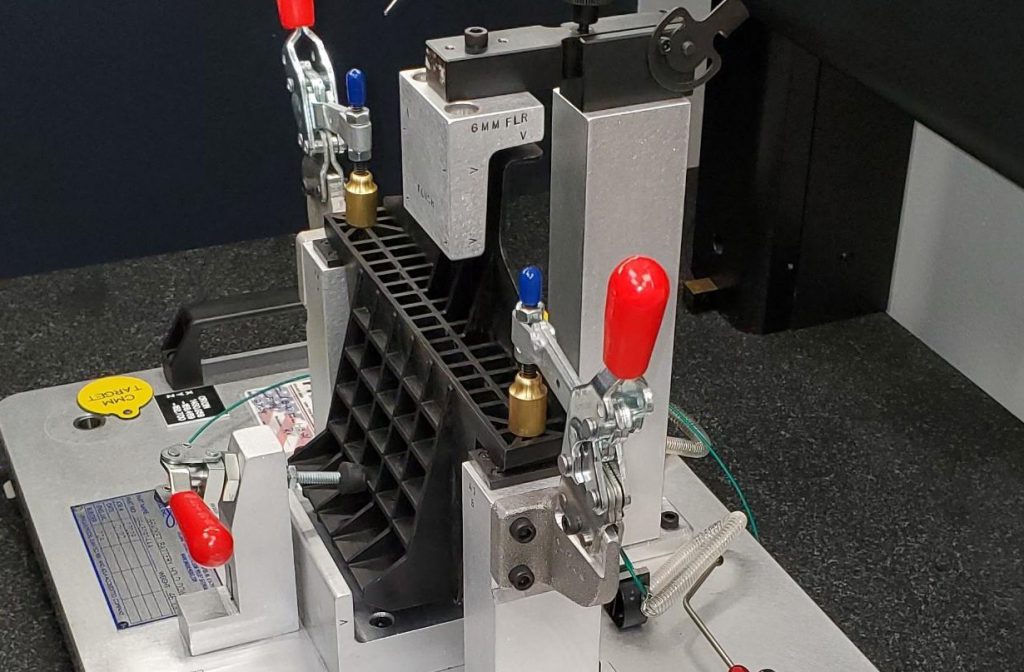

We receive many projects from our clients that require CMM measurement on parts with no checking fixture. With our fixture plate, standoff fixtures, and adjustable clamps, we make a very consistent and repeatable setup to perform the measurement. The fixtures we have also help us to get access the parts datums and all the features

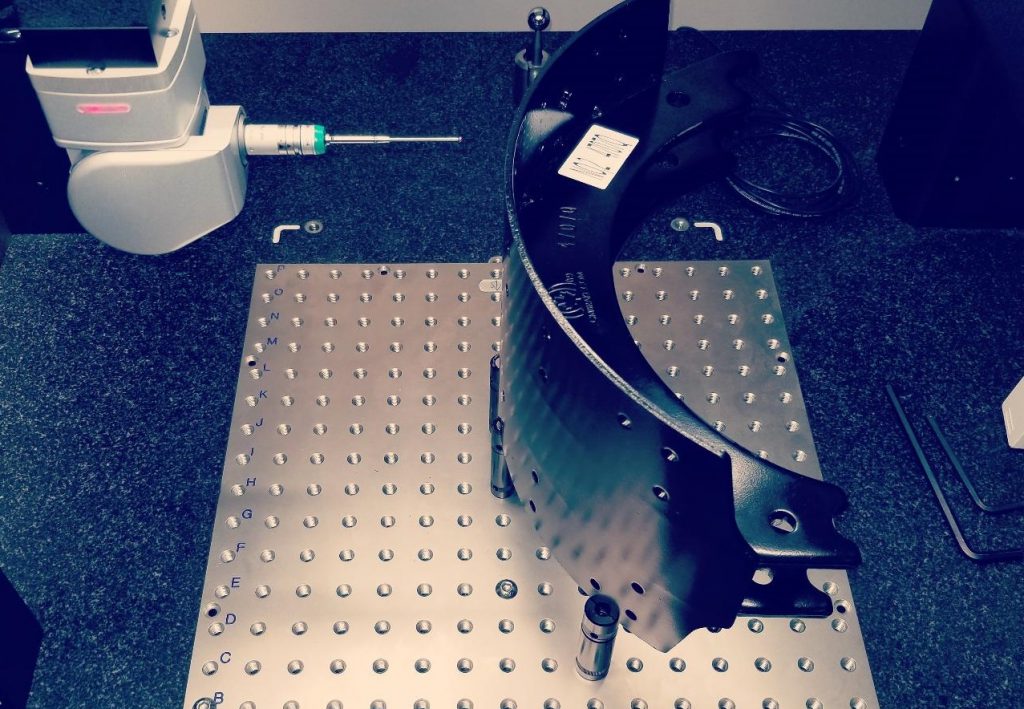

They called it ring but I call it cylindrical monster with very tight tolerance. We received these “rings” and we were asked to measure the ID and OD of the ring with the tolerance of ±0.0005″. With the high accuracy of our machine (volumetric accuracy of 0.005 mm or 0.0002″) we were able to measure

Precision Measurement and Design provides off-line CMM programming to all manufacturing industries and metrology labs. We create CMM programs based on the math data or the 2D drawing of your products and we deliver the right version of the program which will be compatible to your CMM. We will also set up and run the

Precision Measurement and Design provides CAD design for CMM fixtures to different industries such as automotive and aerospace. Our design services are not limited to CMM fixtures. We accept design projects for any 3D modeling design, mechanical assemblies, generative design, product design and development, FEA simulation, and creating toolpath (CAM). Contact us today to discuss

We are here to support you. Our measurement services are fully operational and we are doing our best to provide services to our valued customers while keeping people safe. Should you require any assistance, please contact us at 6472972050 or email behkam.shad@pmdmetrology.com

-We program and measure automotive components for 1st off, in process, and last off inspection.-We provide all necessary dimensional reports and measurements roadmap for your PPAP. – We do R&R study on the fixtures to check gage repeatability and reproducibility.– We perform Capability studies (Statistical Process Control or SPC) to illustrate by the histogram how

Urgent projects done and completed on FCA parts over the weekend. The CMM programs were created for each part/dwg using client’s CMM software and the measurement were done based on the OEM’s requirements.#cmm#measurement#fca#onsite#programming#metrology

Precision Measurement and Design provides reverse engineering services for tool and die, automotive components, aircraft parts, and etc. We not only reverse engineer parts but also create a 3D model using point cloud and have the design ready for re-manufacturing purposes. Reverse engineering can be done on both 2D and 3D profiles with simple or

We do off-site and on-site CMM programming compatible to your CMM. We will also run the program at your facility to assure the functionality of the program at no extra cost. #cmm #pc-dmis #cmm programming

We measure and calibrate checking fixtures. We can also perform R&R studies on gauges and fixtures. #fixtures #calibrate #engineering #design

We work weekends and overtime to make sure we deliver the results in time and meet your rush deadlines at no extra cost. #quickturnaround #cmm #measurement #metrology #design

Our CMM lab is fully controlled temperature and meets all standard requirements. Our CMM also has a calibration certificate under ISO 17025.

DMIS code is the CMM language that we use in order to communicate with our CMM. With DMIS programming, we will be able to move CMM’s probe to certain coordinates in our CMM’s work volume and perform measurement on manufactured parts. Below is an article about DMIS coding written by Steve Horsfall which will introduce

The ROMER Absolute Arm is the first measuring arm which does not require referencing before measurement. When the arm is turned on, it’s ready to go. Quality control, inspection, on-machine verification, reverse engineering, virtual assembly or 3D modelling. Wherever these needs arise, you will find the ROMER Absolute Arm. Much more than just a metrology

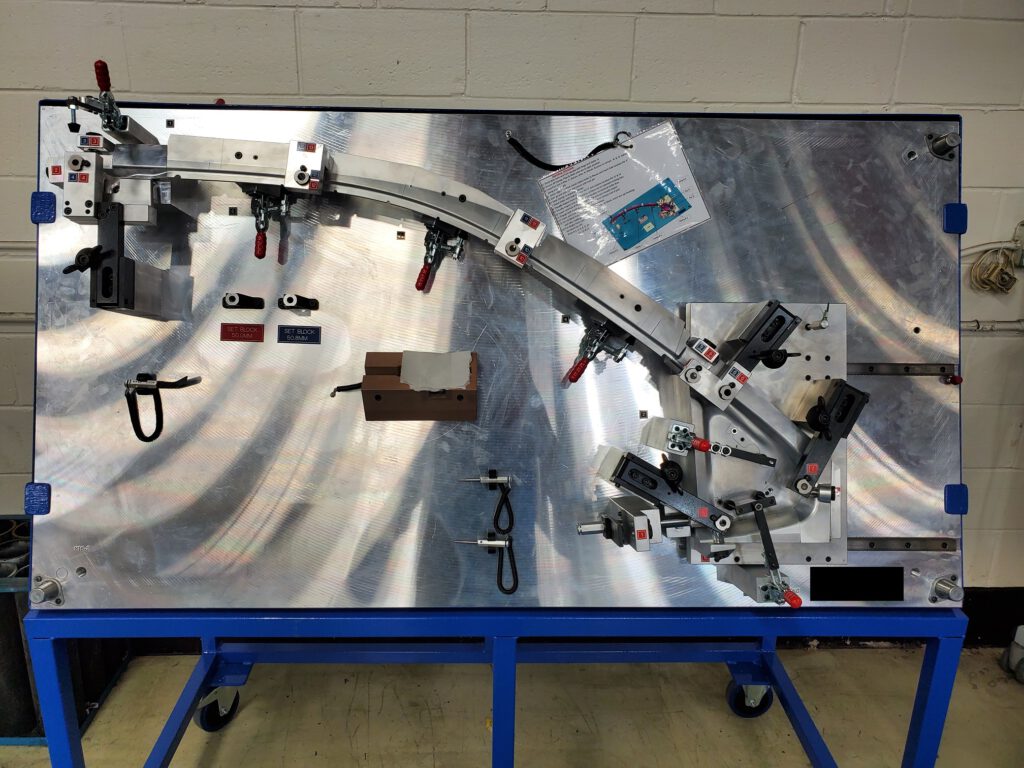

Checking fixtures are designed for accuracy, repeatability and reliability with a strong focus on operator ergonomics. The checking fixture is a convenient tool used by industrial production companies to control the dimensions of auto parts (such as trim edge,surface profile , hole size, flatness, etc.), it is suitable for mass production of parts detection. Different

As computer-aided design (CAD) has become more popular, reverse engineering has become a viable method to create a 3D virtual model of an existing physical part for use in 3D CAD, CAM, CAE or other software. The reverse-engineering process involves measuring an object and then reconstructing it as a 3D model. We can measure the

We use Geometric Dimensioning and Tolerancing in parts and assemblies drawings to define the theoretical (nominal) value of each geometrical feature and the allowable tolerances (variation) between those features. That is to say, there are different standards that we use for GD&T. The standard that we work with, at Precision Measurement and Design, is ASME

Coordinate Measuring Machine (CMM) is a device that measures geometrical features of physical parts by collecting points on the surface with a probe. There are different types of probes in CMM such as mechanical, optical, laser and white light. Based on the need and the accessibility, we choose the specific probe in order to perform
